Information of Hot Runner Coil Heater

 Product Feature:

1.Spring ring heating specification: heating section: 2.2X4.2 3X3 3.4X3.4 3.5X3.5 4X4mm.

2.Heating coil ID 10mm ~ 38mm, heating height of ring: 40mm ~ 200mm

3. Voltage: 220V ~ 380V,wattages: 200W ~ 3000W

4.Built-in thermocouple power:: with or without J /K thermocouple, length of lead wire as 500mm 1000mm 1200mm 1500mm or 2000mm

5. Continuous Operating Temperatures to 1200°F

 Intermittent Operating Temperatures to 1500°F

6.Spring heating ring advantages: high working temperature, fast heating, long service life, convenient installation.

Application :Plastic Die Applications; Blow Molding Machine ; Extrusion ;Hot Runner Systems ;Injection Molding ; Thermoforming

Length of Hot runner heater within 20-3000mm is mainly used for hot runner mold or, as well as other precision heating system.  Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide  high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.

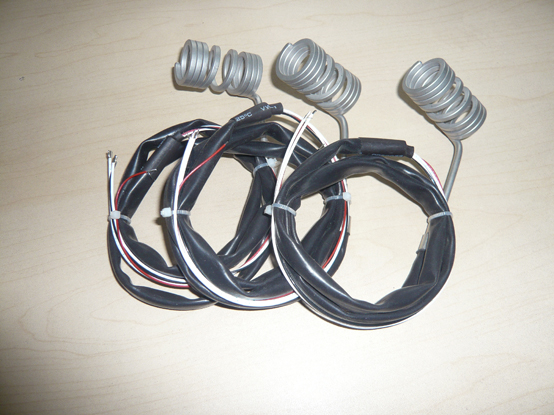

 Some photos for reference:
